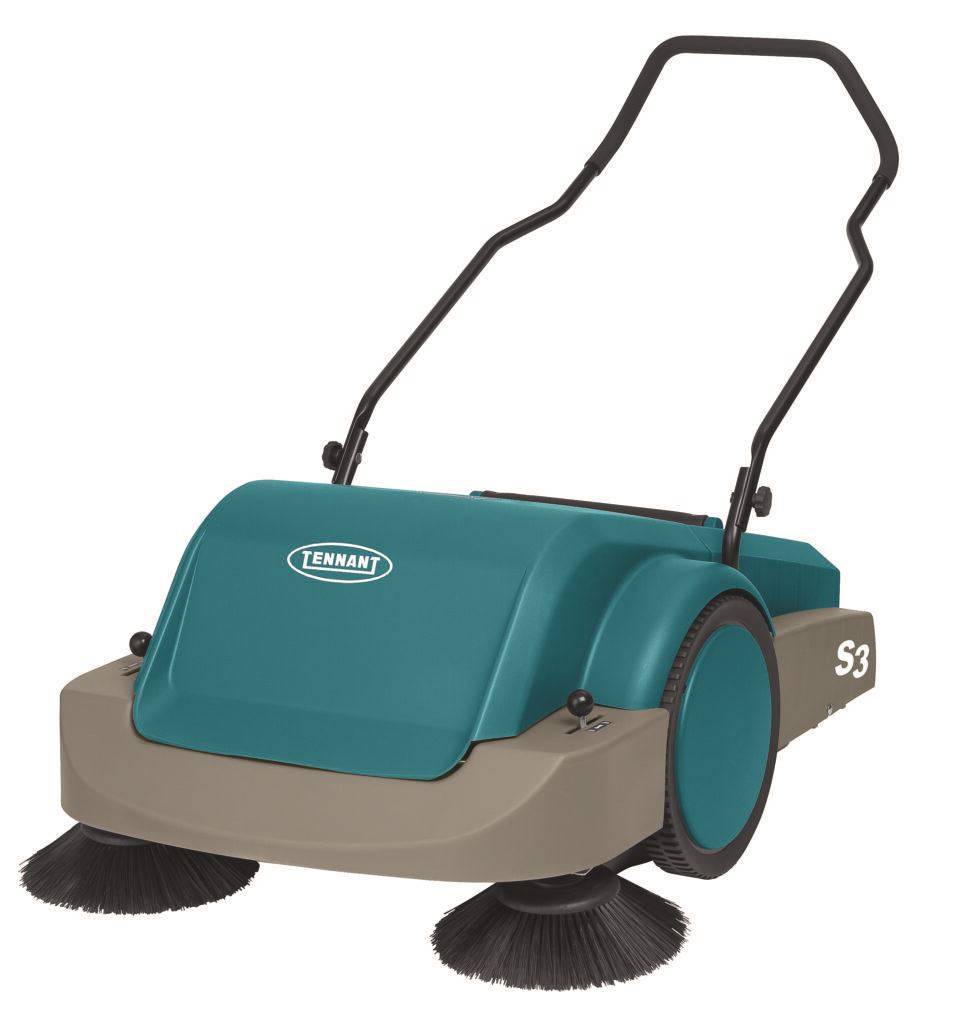

S3 MANUAL WALK-BEHIND SWEEPER

XPERIENCE MAXIMUM PRODUCTIVITY
Dual side brushes increase the sweeping path to 34 in / 870 mm, and a large 1.8 ft3 / 50 L hopper saves you trips to the dumpster, which gives you more time for cleaning.

VERSATILE ANYTIME, ANYWHERE CLEANING
The S3’s flexible design is well suited for indoor and outdoor cleaning. Manual operation makes it the perfect option for noise-sensitive environments.

RELY ON QUALITY CONSTRUCTION AND PROVEN COMPONENTS
Major components field-proven in commercial applications for 10 years. Wrapped front bumper design helps prevent high-impact damage to body and side brushes.

SMART, INTUITIVE DESIGN
Increase productivity with simple, no-tool side brush adjustments and easy-to-use operation for less time training and more time cleaning. The sweeper’s contoured handle is padded and ergonomically designed for optimal operator comfort.

TWINMAX™ SWEEPING TECHNOLOGY INSIDE THE S3

Equipped with Tennant’s TwinMax sweeping technology, the S3 cleans your floors in a single pass. The twin, counterrotating brushes combine overthrow and direct sweeping principles to capture large and small debris with one machine.
TwinMax technology is designed for sweeping multiple surfaces in both indoor and outdoor environments, giving
you maximum versatility for anytime, anywhere cleaning.

A Ergonomically designed handle,contoured and padded for operator comfort.
B No-tool, fully adjustable dual side brushes clean corners and edges easily without changing directions. Increased
cleaning path coverage increases productivity and can be adjusted to your floor surface for optimal cleaning.
C TennantTrue® brushes are designed to fit your machine and deliver optimal cleaning performance. Chevron bristle pattern and TwinMax technology work together to pick up more debris in a single pass.
D TwinMax sweeping technology combines overthrow and direct sweeping principles to pick up a greater variety of debris with one machine.
E Large 1.8 ft3 / 50 L hopper reduces empties and is easy to remove, simplifying the cleaning process and increasing operator productivity.



S3 MANUAL WALK-BEHIND SWEEPER TECHNICAL SPECIFICATIONS:

SWEEPING SYSTEM
Cleaning path 34 in / 870 mm

BRUSH DRIVE SYSTEM
Main brush length 20 in / 500 mm
Main brush diameter 7.8 in / 200 mm
Side brush diameter 13 in / 320 mm
Debris hopper volume capacity 1.8 ft3 / 50 L
Drive type Belt

POWER SYSTEM
Manual

MACHINE SPECIFICATIONS
Length 43 in / 1092 mm
Width 30 in / 760 mm
Height 55.7 in / 416 mm
Weight 66 lb / 30 kg
